Measuring distance#
This example demonstrates how to measure distance between two points.
add_measurement_widget().
!!!No serializer for vtkDistanceRepresentation3D with id 0000000025e30320
import pyvista as pv
cube = pv.Cube()
cube2 = pv.Cube([10, 10, 0])
pl = pv.Plotter()
pl.add_mesh(cube)
pl.add_mesh(cube2)
def callback(a, b, distance):
pl.add_text(f'Distance: {distance:.2f}', name='dist')
pl.add_measurement_widget(callback)

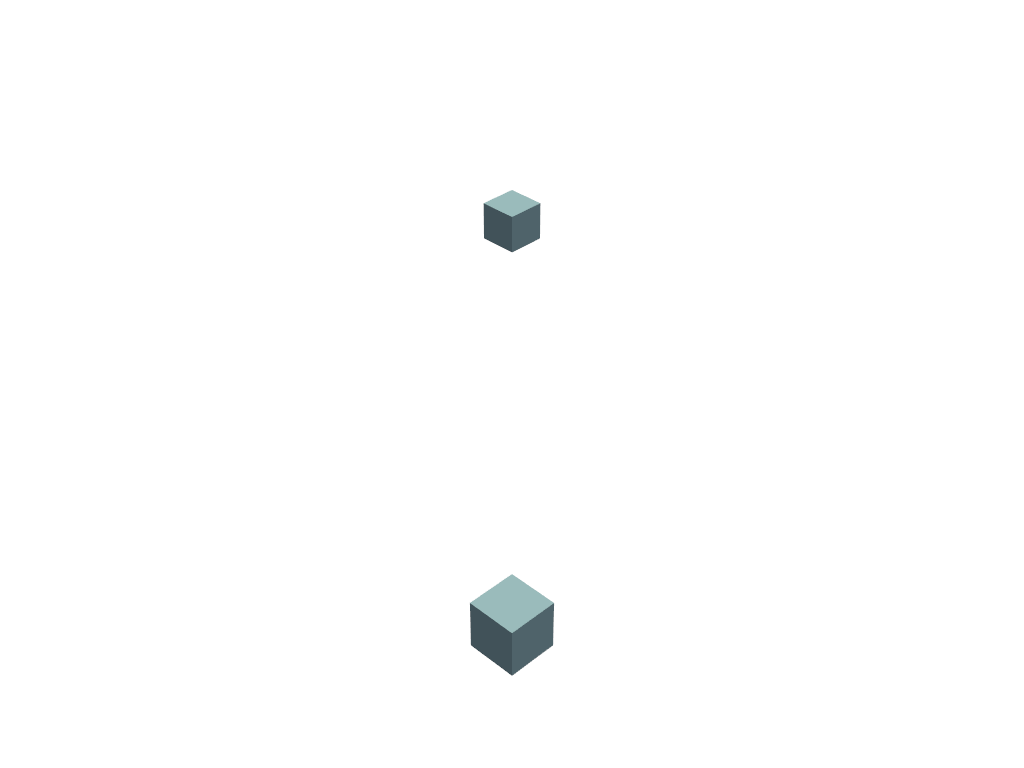

pl.show()
Total running time of the script: (0 minutes 0.080 seconds)
